Maximum
Brightness Area

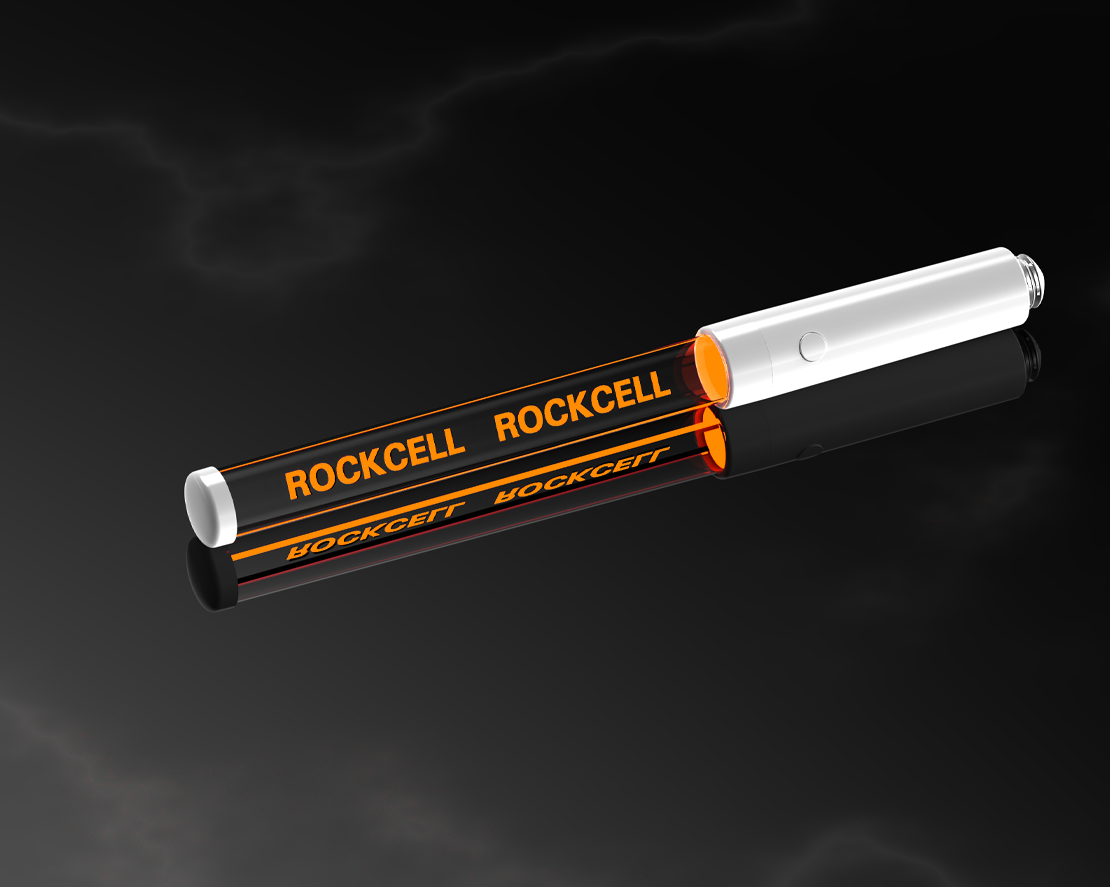

Cell Lightstick-RC905S

Tradition Model

Maximum Brightness Area

Suitable for Concert, Event...

Turn on and off

Turn the battery cover to the left to activate the light stick and the right to close

16 Standard colors
Available for Customized your
exclusive color
Click to see the different color light color

Special Design
Battery Power testing

To make sure battery have enough power for the show

The final power test unique to Rock Cells. Two hours before the show, a signal is sent to the light stick. The power is sufficient to display orange, the power is insufficient to display red.

PET+Flash Paper
Knob
QR code location
Logo Printing Location

Dimension

Size
Length:305mm
Handle Diameter:28mm
Material
Top Cover:ABS+PC
light-emitting part:PET+Flash paper
Handle:ABS+PC
Bottom:ABS+PC+silver spray paint

Specification

Main chip
8 Bit MCU + RF transceiver
Radio frequency
2.4GHz
Mode
Wireless / Vibration / Mapping / Detection / Testing
Body
ABS + Transparent PE Tube + Flash Paper
LED
DIP 5mm RGB LED x 1
Color
Built-in 16 colors
1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black
Switch
Knob
Vibration
Color Change
NFC
Unavailable
Battery
Alkaline battery AAA x 2
Distance
500m Max
0perating hours
8h
Environment
ROHS
Regulation
SRRC FCC CE NCC

Instruction

Power
On
Knob turns left on

Off
Knob turns right off
Mode
Wireless
When wireless console start to work, wristband manual mode will be stop to work and go to wireless mode automatically. When wireless mode stop, wristband need to re-power on, then it can recover to manual mode.

Vibration
Vibration - color change, colors sequence cycling as 1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black.

Mapping
Power on, go mapping automatically, breathe tree times. If no code command is received, enter the manual control mode.

Detection
The wireless control device sends a detection command. Red light keep means low power, blue light keep means high power.

Standby
The wireless control device issues a standby command. The wristband will flash for every 10 Sec.
Precautions
Remove insulator and enter the working state. Even if there is no light, the power supply continues to work, so please keep the insulation sheet properly. Please insert insulator after use.

Please use alkaline AAA batteries.Do not disassemble randomly. Do not throw it into fire. Ignoring the warning may cause battery explosion.

Packaging Information

Project Battery Package Package dimensions Net weight Gross weight Qty Carton size Net weight Gross weight
1 Yes OPP 310 x 35 x 35mm 68g 71g 232 570 x 400 x 435mm 15.77 kg 17.07 kg
2 No OPP 310 x 35 x 35mm 48g 50g 232 570 x 400 x 435mm 11.13 kg 12.2 kg
